Inserting Mirror

Slot the mirror in the latch and rock back to front until it slides all the way in.


Image Flipping Apps

The mirror will flip the image upside down. We have identified some recommended camera apps for Android and iOS that have features to correct the orientation of the image inside the software.



iOS

Video - Download  ProMovie  Recorder in the app store. To flip the video: Click the settings icon on the left, click transform, then click Flip. This feature is free with a watermark. If you’d like to remove the watermark it is a $2.99 purchase. No need to post process to save the flip.



Photos – Download Upside Down Camera from the app store. It will allow you to see images correctly when taking photos but will need to use Snapseed as mentioned below to permanently save the file in the correct orientation.  Both apps are free.

Photos Flip post process - Download googles free app called Snapseed. Open the photo in the app, click “Tools”, and then click “Rotate”.

Android

Photos & Videos - Search for Open Camera in the app store. Once in the app click the setting icon, click photo settings, Click on “Front camera mirror”, Select “Mirror photo”. This will mirror the image for both photos and videos. They will not be saved mirrored however, so you will need to use the apps mentioned below to quickly rotate and re save the files.



Photos Flip post process - Download googles free app called Snapseed. Open the photo in the app, click “Tools”, and then click “Rotate”.

Video Flip post process - Download Smart Video Rotate and Flip. It is a free 1 click and save app.

Zoom To Fit



The mirror will flip the image upside down. We have identified some recommended camera apps for Android and iOS that have features to correct the orientation of the image inside the software.

Android – Due to a very wide viewing angle, some android phones will need to be zoomed up to 2x to focus the camera past the phone. Another option is to record and crop if zooming becomes too shaky.

iOS – There is no need to zoom on iPhone.

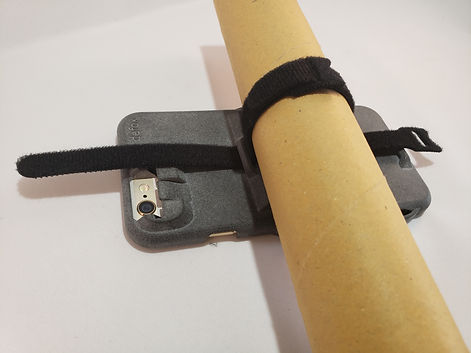

Strapping



The case comes with four 1/2" Velcro straps that can be configured in a number of ways.  Alternatively, any string, zip ties, shoe laces, etc can be used.

Bike Mounting

The mirror storage slot doubles as a mounting cradle for bike handlebars.



1. Remove both mirrors

2. Slide a Velcro strap through loop. Connect to second Velcro strap. Place rubber pad if extra grip is needed.

3. Place phone on handlebar. Feed Velcro strap through second loop.

4. Tighten. Loop the Velcro straps back onto themselves.

5. Snap in the mirror and record!
